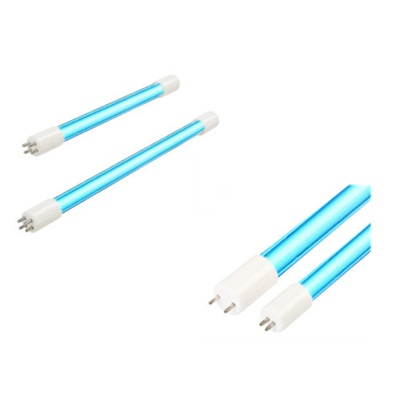

GHOT15N Germicidal UVC Lamp – 145W High Output Instant-Start
The GHOT15N germicidal UVC lamp is a long-length, high-output, low-pressure ultraviolet lamp designed for demanding disinfection applications where maximum UVC intensity and extended exposure length are required. Operating in the germicidal UVC range, this lamp is engineered for enclosed air, water, and surface disinfection systems that require higher UV dose delivery.
With its extended arc length and significantly increased electrical input, the GHOT15N delivers substantially higher UVC output compared to standard-output lamps of the same size. This makes it ideal for high-capacity HVAC systems, large industrial treatment chambers, and commercial disinfection systems operating under high airflow or flow-rate conditions. The lamp supports instant-start operation and maintains stable UVC output across its rated service life.
Key Features
-
High-output germicidal UVC lamp for intensive disinfection applications
-
Extended length for maximum UVC coverage and exposure
-
Instant-start operation
-
High UVC output for increased microbial inactivation
-
Suitable for replacement use in compatible high-output UVC systems
Technical Specifications
Lamp Type: GHOT15N
Total Length: 1554 mm
Arc Length: 1478 mm
Lamp Diameter: 15 mm
Electrical Values:
-
Voltage: 180 V
-
Current: 0.800 A
-
Input Power: 145 W
UVC Output:
-
UVC Output Power: 48.0 W
-
UV Intensity @ 1 m: 385 µW/cm²
Rated Lamp Life: 9,000 hours
Applications
✔ High-capacity HVAC and ducted air disinfection systems
✔ Large-scale water treatment reactors
✔ Industrial and commercial UVC chambers
✔ Surface disinfection equipment requiring high UV dose
✔ OEM and replacement use in high-output UVC devices
Warnings and Safety
⚠ DANGER – Risk Group 3 Ultraviolet Product
This lamp emits high-intensity UVC radiation that can cause serious injury to skin and eyes.
-
Avoid direct exposure to UVC radiation
-
Use only in fully enclosed or shielded systems
-
Not intended for open or occupied environments
In the unlikely event of lamp breakage, ventilate the area for at least 30 minutes. Handle broken parts with gloves, place them in a sealed container, and dispose of them according to local waste and recycling regulations. Do not use a vacuum cleaner.
Replacement Information
This lamp is intended for use as a replacement high-output germicidal UVC lamp in compatible systems designed for the GHOT15N format. Always confirm electrical ratings, ballast compatibility, and physical dimensions before installation.
