Monitoring of relative and absolute UV-intensity (depending on sensor type). The mains-driven panel meter HM-2 serves with the respective sensors for a continuous radio-metric control of lamps, especially UV radiators. Different UV and visible spectral ranges can be controlled with the corresponding sensors.
UV Monitor Application

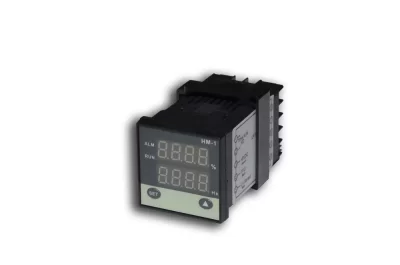

The mains-driven panel meter HM-1 serves with the respective sensors for a continuous radio-metric control of lamps, especially Uators.
Measuring range: 0~20mW/cm2
Resolution: +/- 0.2%
Display: relative % and timer
Weight: 320g
Operating temp.: 0~50oC
Storage temp.: -10~70oC
Humidity: <80%
Supply voltage: 85~265VAC 50/60Hz
Dimensions: 48X48X84mm
Open Dimensions: 45X45mm
Sensor signal input: 0~5V DC
Relay contact for alarm: 1 X time-over
and 1 X UV low contact
UV Monitor Application

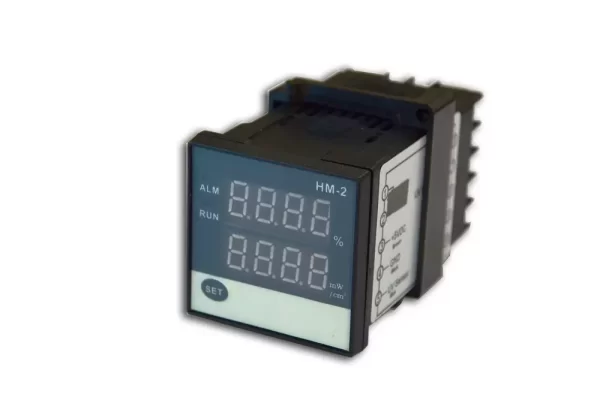

Haisen UV Monitor HM-2 Monitoring of relative UV-intensity (depending on sensor type) (%).The mains-driven panel meter HM-1 serves with the respective sensors for a continuous radio-metric control of lamps, especially Uators.Different UV and visible spectral ranges can be controlled with the corresponding sensors.
UV Monitor Application

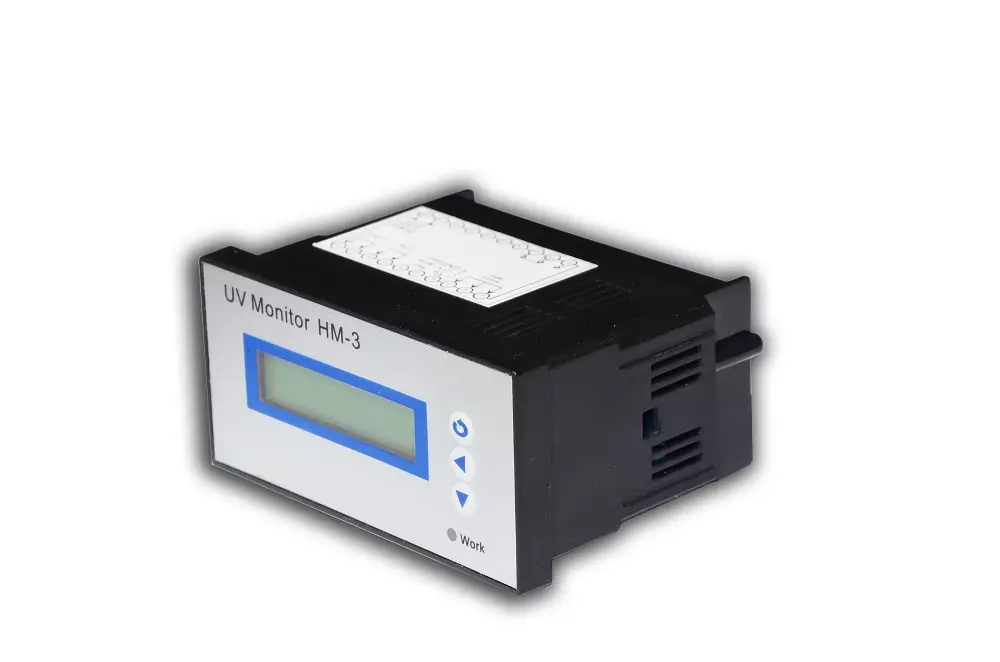

Haisen UV Monitor HM-3 Monitoring of relative UV-intensity (depending on sensor type) (%).The mains-driven panel meter HM-3 serves with the respective sensors for a continuous radio-metric control of lamps, especially Uators.Different UV and visible spectral ranges can be controlled with the corresponding sensors.
Measuring range: 0~20mW/ 0~20000μW/cm2
Resolution +/- 0.2%
Display: absolute value, relative % and timer
Weight: 420g
Operating temp.: 0~50oC
Storage temp.: -10~70oC
Humidity: <80%
Supply voltage: 85~265VAC 50/60Hz
Dimensions: 96X48X74mm
Open Dimensions: 92X45mm
Sensor signal input: 0~5V DC
Signal Output: 1X4~20mA and 1X1~5V DC
Relay contact for alarm: time-over and UV
low contact
Haisen waterproof
serves as robust, long-time stable measuring head for the precise measurement of UVC irradiances in UV water disinfection systems and UV Air purification systems. A superior long-time stability and corrosion resistance is achieved by the selection of suitable materials.
Resolution 0.01mW/cm2
Weight: 450g
Operating temp.: 0~60oC
Storage temp.: -10~70oC
Humidity: <80%
Body: Stainless steel 316L
Max. pressure: 10bar
Cable: Length 2.5m(longer on request)
